Behind every Bekaatherm quote is a 30-year manufacturer running extrusion and injection lines across a 120,000 m² facility, backed by 10,000 molds and 1000+ people. Enough capacity to fill your containers on time, and enough tooling to make them yours.
We manufacture and export wholesale to importers, distributors, contractors and OEM brands, not single-item retail.
Bekaatherm is a manufacturer, not a trading desk. Every figure below comes from our own plant in Türkiye, the scale that lets us hold price, hold batch consistency, and keep your reorders flowing when demand spikes. Where a number is specific to your program, monthly tonnage, container split, custom lead time, we confirm it directly rather than publish a figure that will not match your order.
| Capability | Bekaatherm | What it means for you |
|---|---|---|
| Manufacturing experience | 30+ years (PPR / PEX / PE) | A proven process, not a startup line |
| Facility size | 120,000 m² | Volume production under one roof |
| Molds / tooling | 10,000 sets | Fast tooling for custom & OEM parts |
| Workforce | 1000+ employees | Capacity to hold lead times in peak season |
| Raw material | 100% high-grade resin | Batch-to-batch consistency, no filler |
| Product systems | PPR · PPR-AL-PPR · PPR-FG · PE · UPVC drainage | One-stop supply, pipe, fittings, valves, drainage |
| Pipe range | PPR 20–63 mm · UPVC drainage DN50–200 | Covers residential, commercial & municipal |
| Pressure ratings | PPR PN20 / PN25 · HDPE / PP compression PN10 | Project-grade pressure classes in stock |
| Export reach | 118+ countries | Export-ready docs & logistics experience |
| Certifications | SKZ · ISO TYPE-5 · CE · WRAS | Passes customs & project approval |
| Monthly output | Available on request | Sized to your program, ask our team |

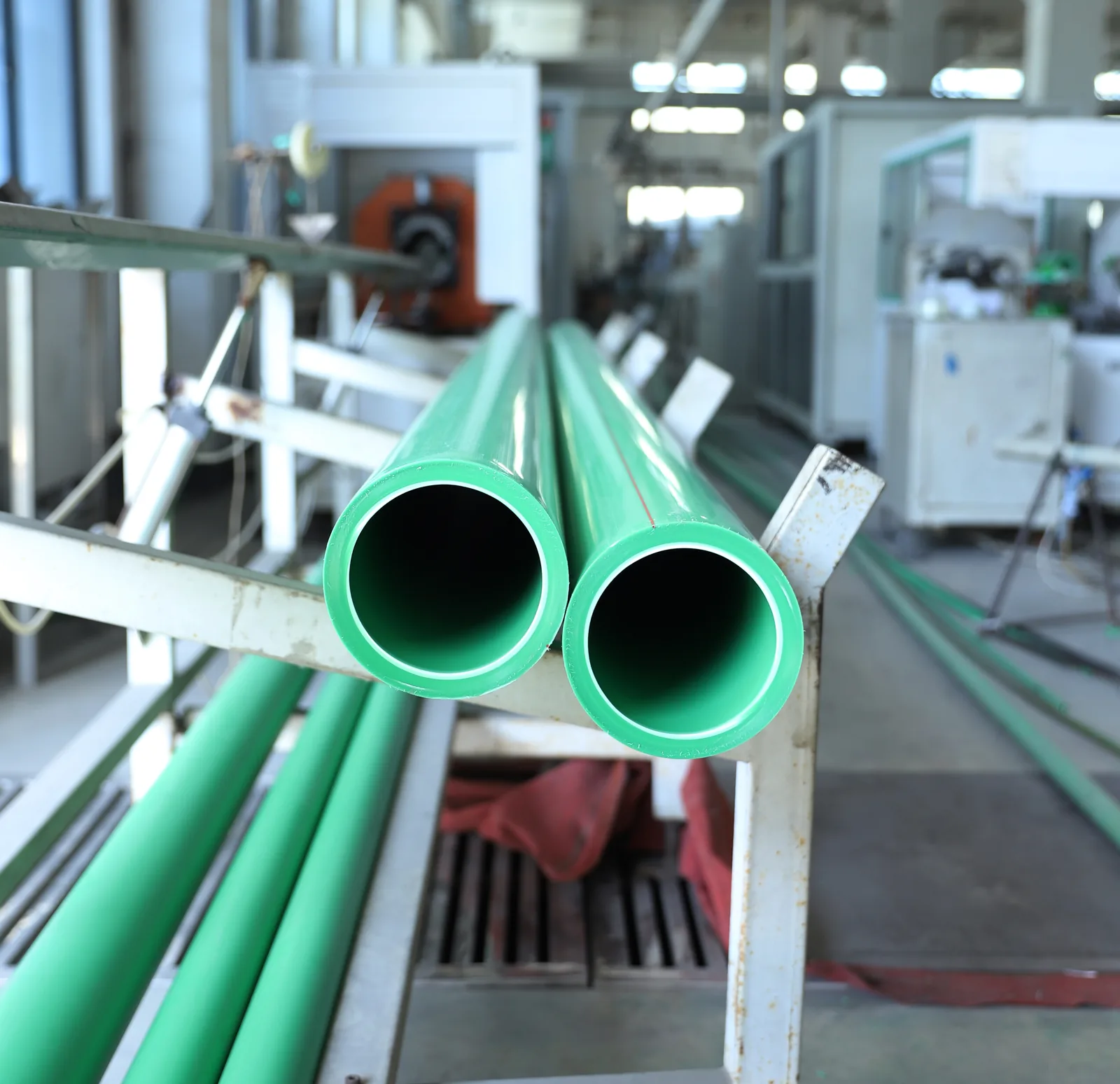

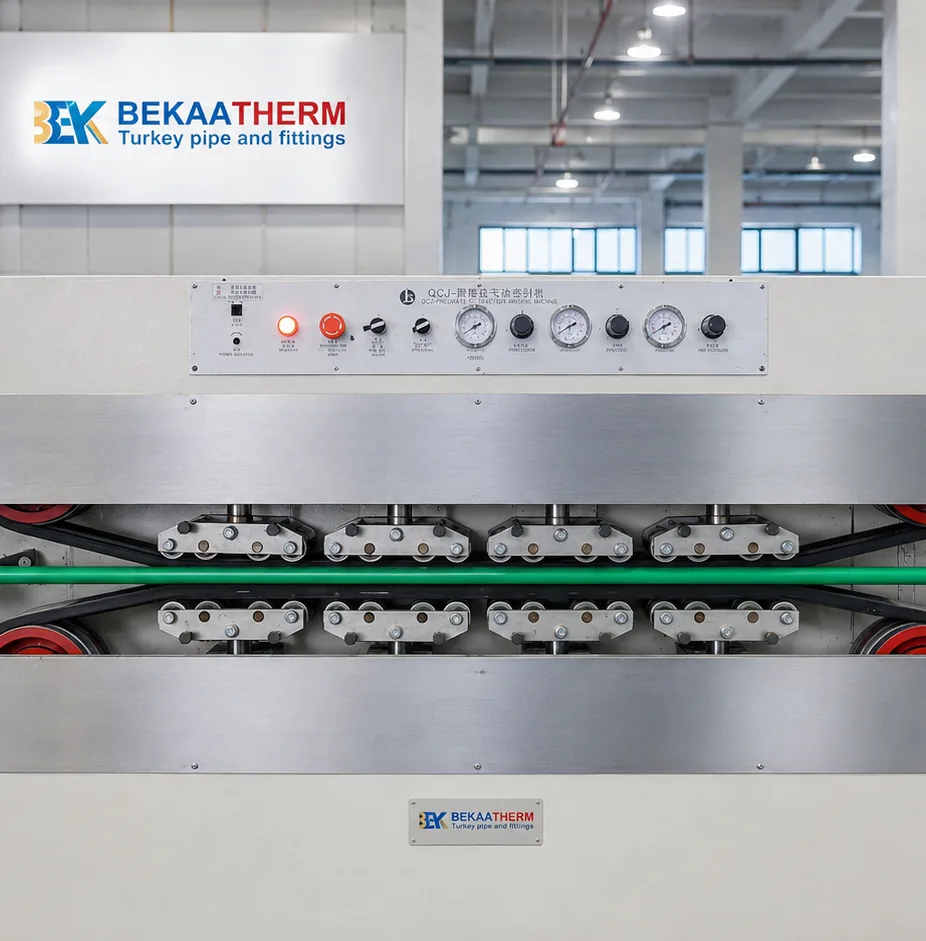

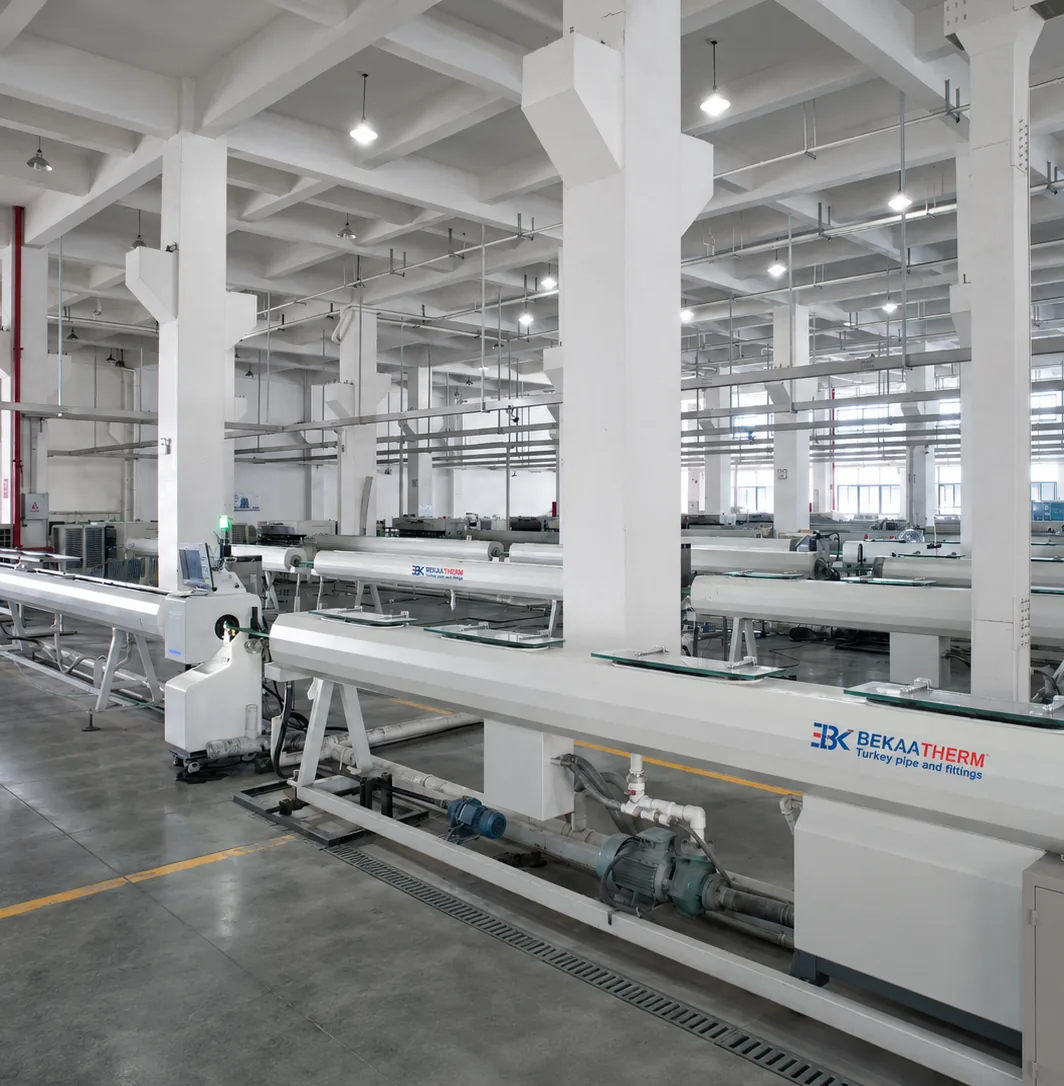

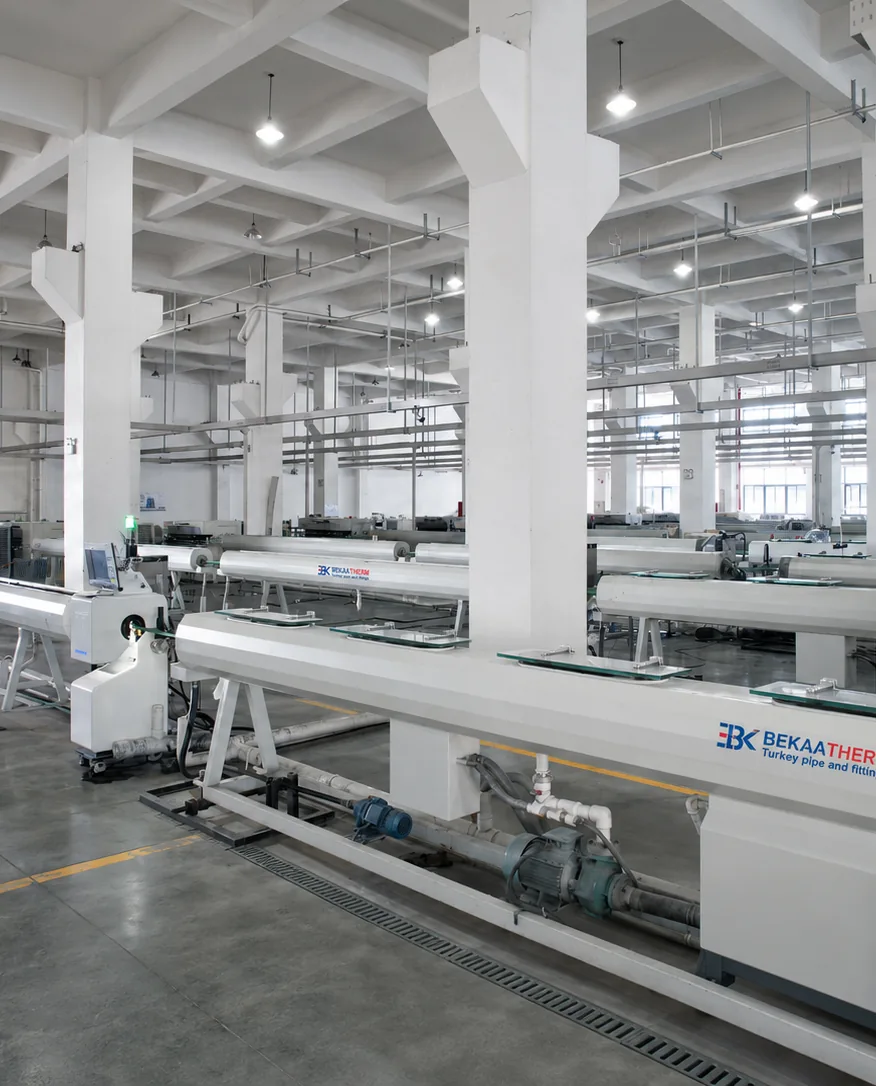

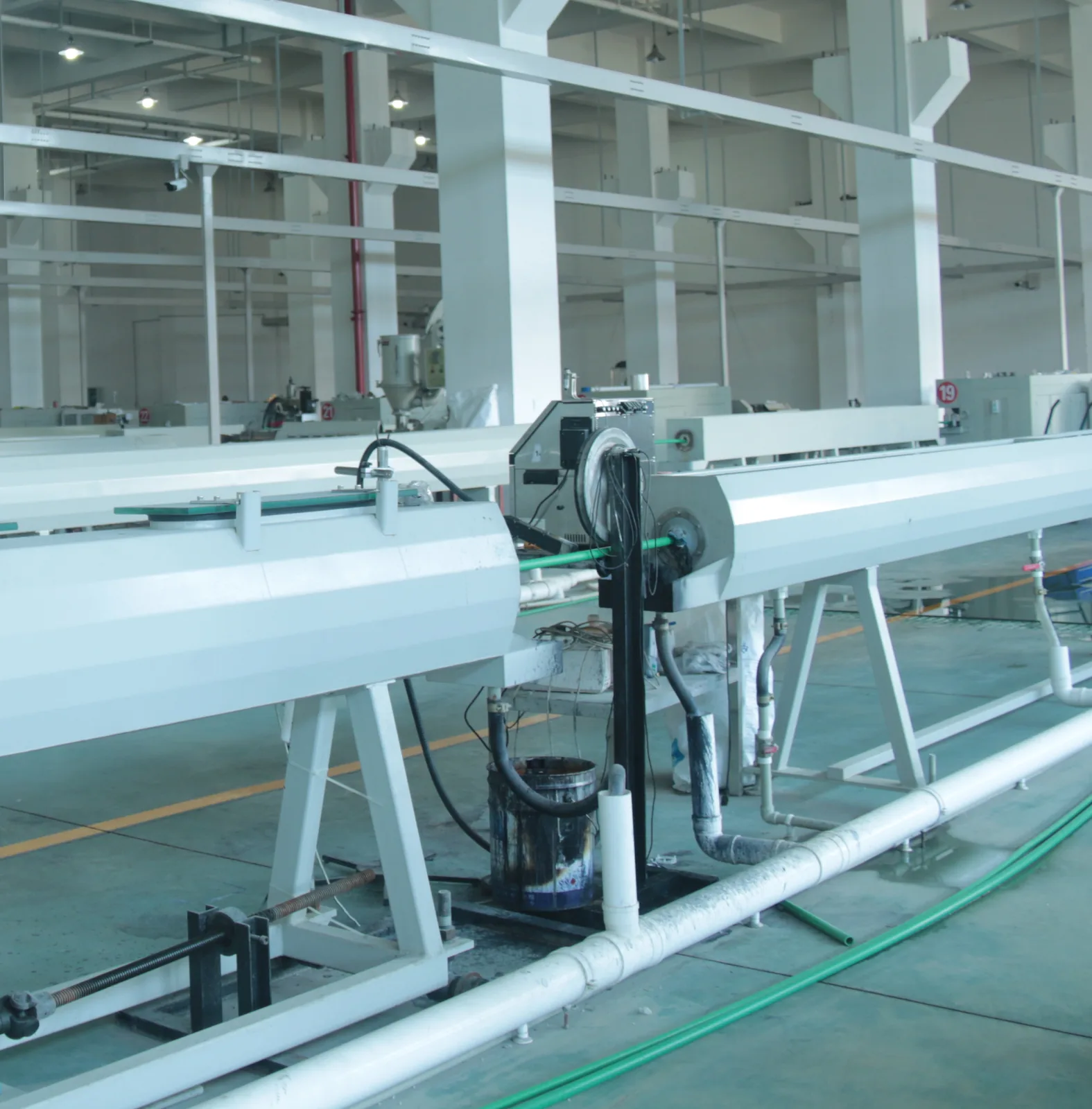

Our extrusion lines run the full Bekaatherm pipe program, PPR PN20 and PN25 in pure resin, PPR-AL-PPR aluminum-composite, and fiberglass-composite (PPR-FG), across the 20–63 mm range, in our green, white and coffee color families. Composite structures are co-extruded in-line so the aluminum or fiberglass middle layer is bonded, not laminated after the fact. Continuous, monitored extrusion is what keeps wall thickness and pressure rating consistent from the first meter to the last container.
All six pipe structures share the same 20–63 mm outer-diameter footprint, so a distributor can carry one connection system across cold water, hot water and heating without switching fitting stocks. PN20 carries a nominal 20 bar working pressure at 20 °C and PN25 a nominal 25 bar; the aluminum layer in PPR-AL-PPR cuts thermal expansion for long hot-water and heating runs, while the fiberglass layer in PPR-FG adds hoop strength at a lighter wall than aluminum. Wall thickness is metered against the outer diameter continuously, that is what turns a data sheet into a container that actually holds spec.
| PPR (pure) | PN20 / PN25, 20–63 mm, green / white / coffee |
| PPR-AL-PPR | Aluminum-composite, low expansion, PN20 / PN25 |

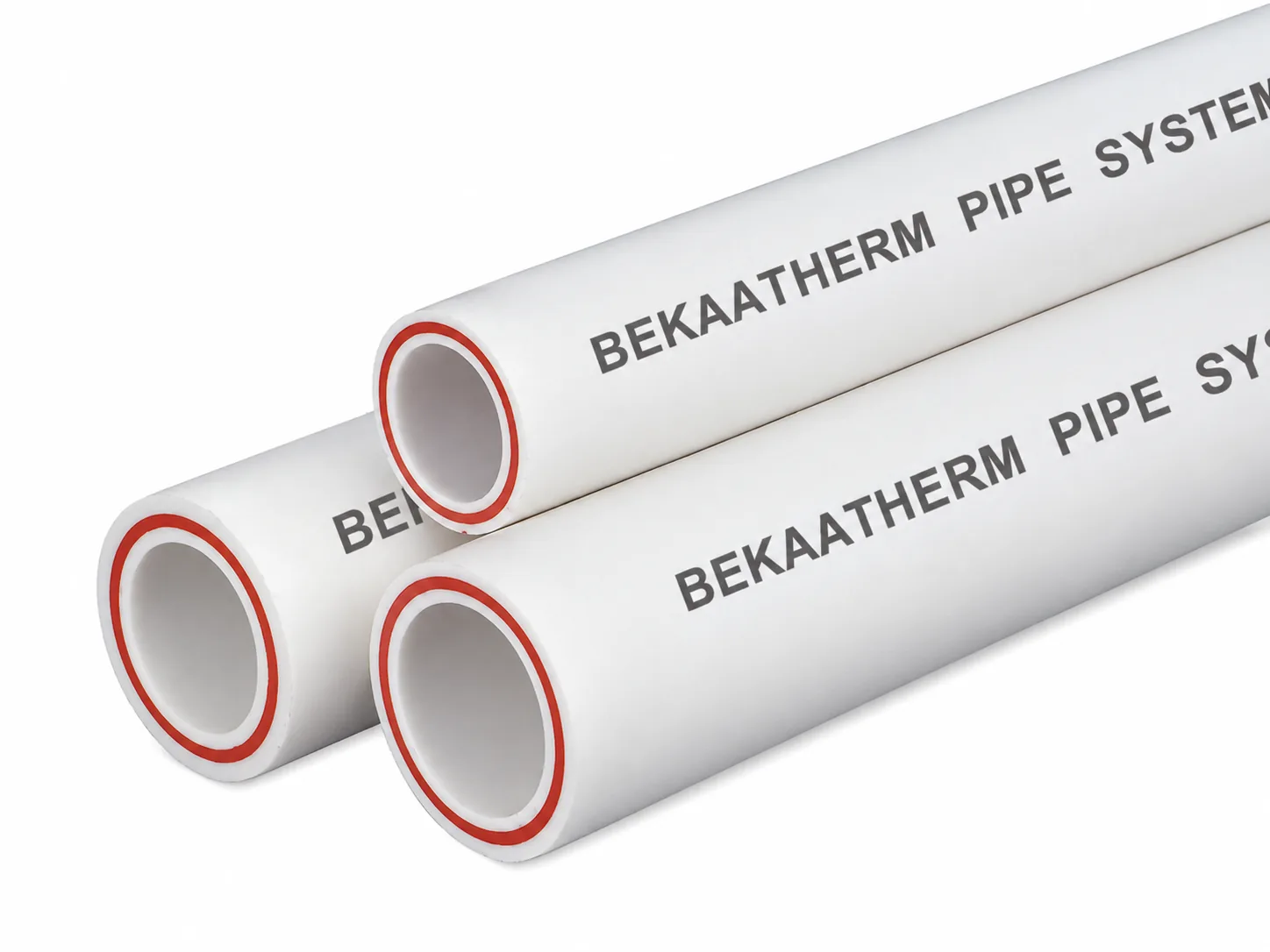

| PPR-FG (fiberglass) | Fiberglass-composite, higher strength, PN20 / PN25 |
| PE | HDPE for outdoor supply & compression fittings feed |
This is the exact matrix our extrusion lines are tooled and calibrated for, six structures across six outer diameters (20–63 mm), with the wall thickness that carries each pressure class. For an importer or project buyer, a published spec table is the fastest way to check that a factory really makes what its catalog claims. Values are OD × wall thickness in millimetres.
| OD (mm) | PPR pure PN20 | PPR pure PN25 | PPR-AL-PPR PN20 | PPR-AL-PPR PN25 | PPR-FG PN20 | PPR-FG PN25 |
|---|---|---|---|---|---|---|
| 20 | 20×2.8 | 20×3.4 | 20×3.1 | 20×3.4 | 20×2.8 | 20×3.4 |
| 25 | 25×3.5 | 25×4.2 | 25×3.3 | 25×4.2 | 25×3.5 | 25×4.2 |
| 32 | 32×4.4 | 32×5.4 | 32×4.1 | 32×5.4 | 32×4.4 | 32×5.4 |
| 40 | 40×5.5 | 40×6.7 | 40×5.0 | 40×6.7 | 40×5.5 | 40×6.7 |
| 50 | 50×6.9 | 50×8.4 | 50×5.5 | 50×8.4 | 50×6.9 | 50×8.4 |
| 63 | 63×8.6 | 63×10.5 | 63×7.0 | 63×10.5 | 63×8.6 | 63×10.5 |

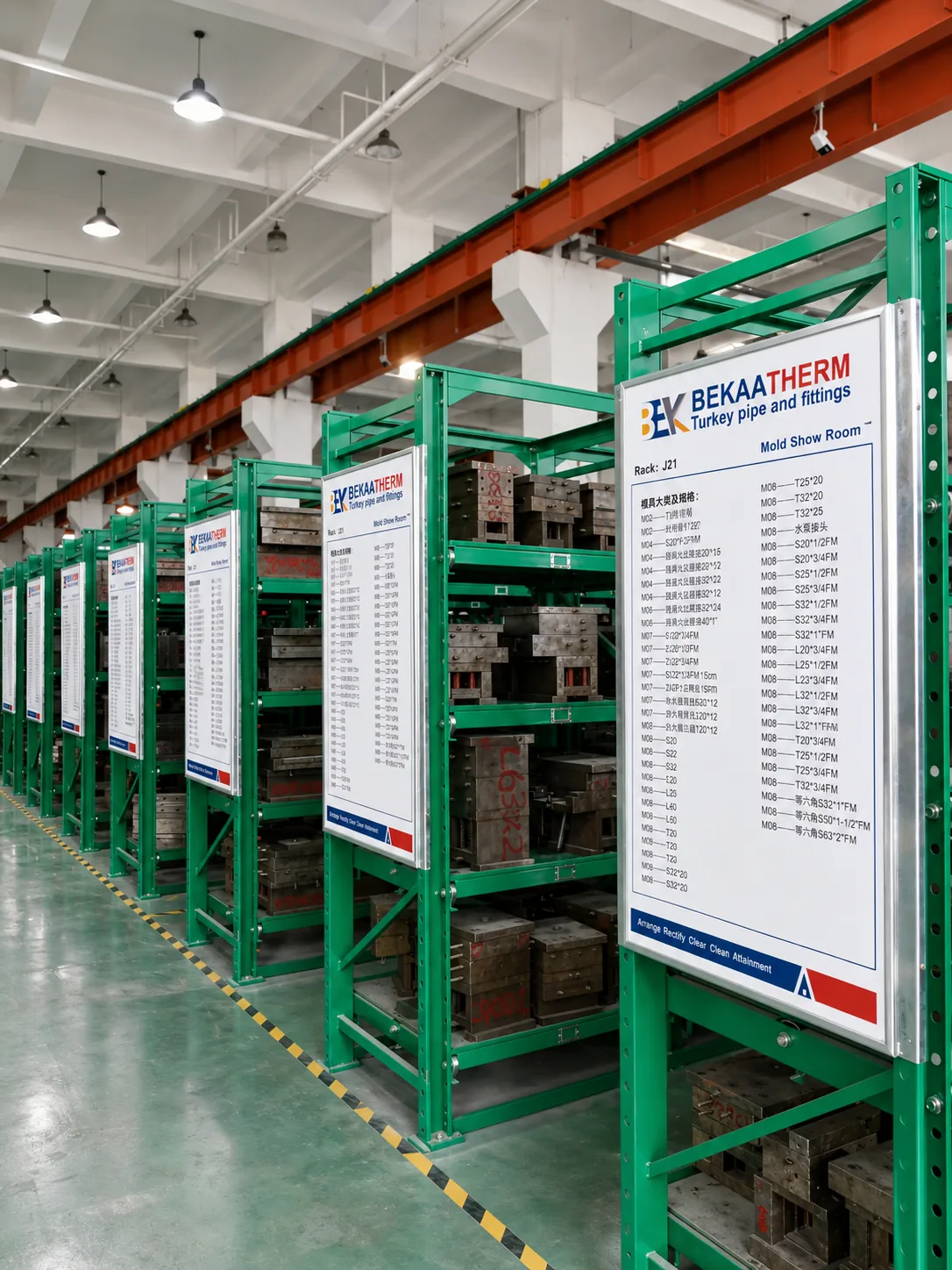

Fittings are where a factory’s real capability shows. Bekaatherm holds 10,000 sets of molds, a tooling library large enough to run our full fittings, valve and manifold catalog with matched resin and color, and to open new tooling for custom or private-label parts without starting from zero. For an OEM brand, that mold depth is the difference between “we can make your standard range now” and “wait months for tooling.” Brass inserts are molded in-house on the same lines, so threaded fittings carry the same consistency as the pipe.

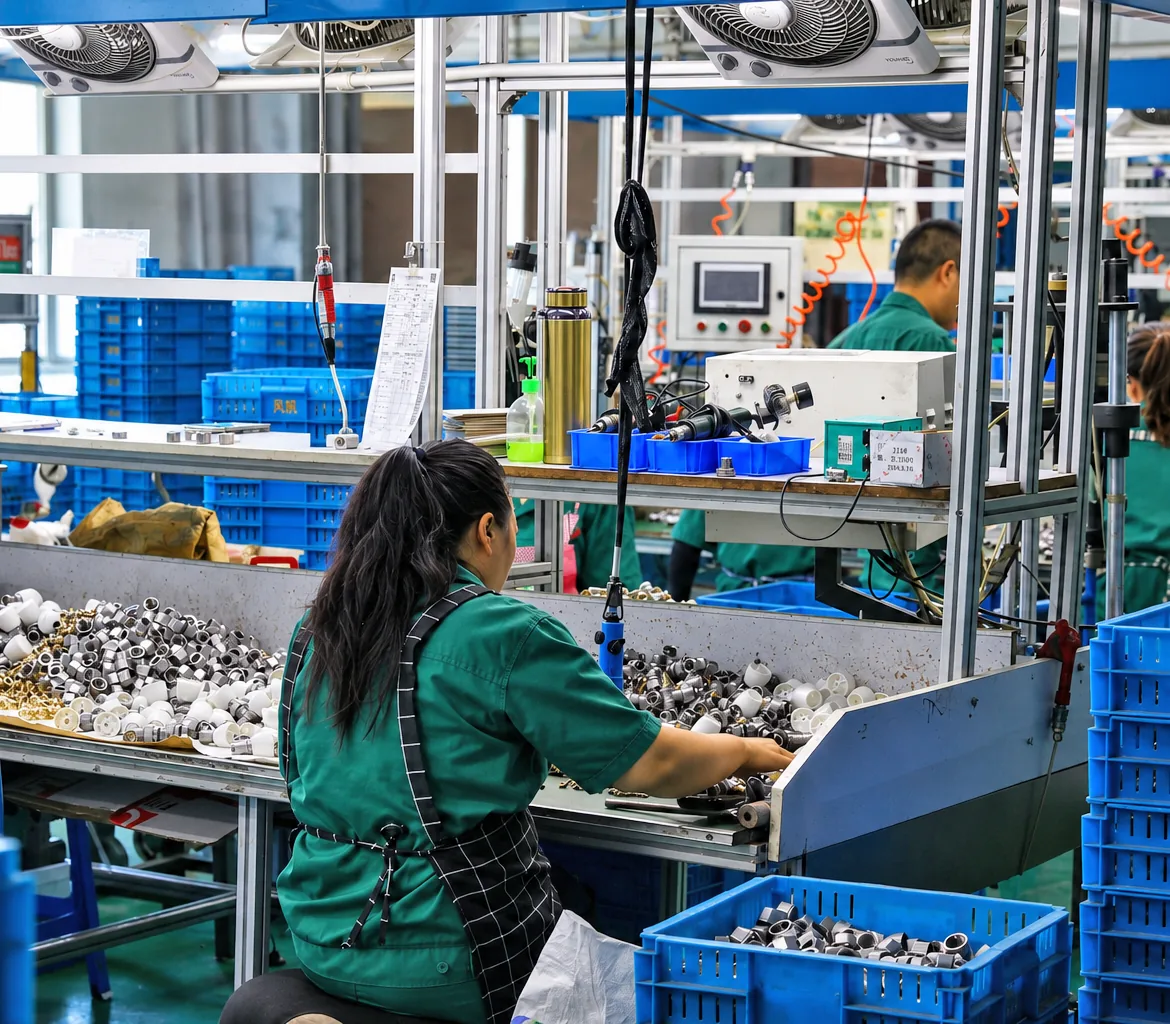

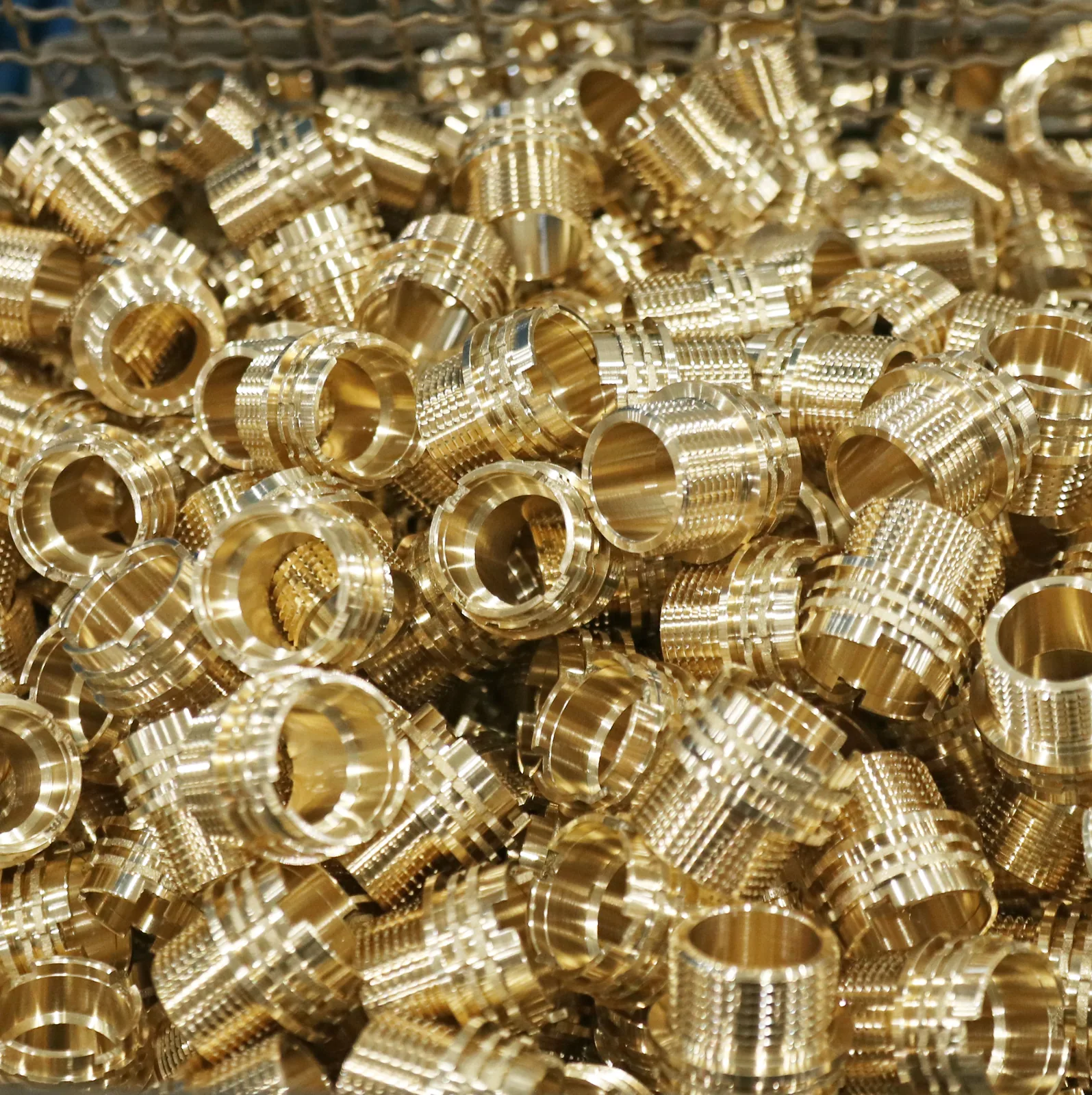

The library spans the whole connection system: plain sockets, tees, elbows and end caps in the 20–63 mm range; brass-insert female and male fittings for the transition to metal valves and taps; unions, manifolds and radiator valves for heating; HDPE / PP compression fittings for outdoor supply; and UPVC drainage from DN50 to DN200. Because every one of those parts is molded from the same high-grade resin as the pipe, a contractor gets one system that welds and seals as a family instead of a bag of mixed-tolerance parts.
| Mold library | 10,000 sets, full range + custom tooling headroom |
| Product families | Fittings, valves, manifolds, HDPE / PP compression, UPVC drainage |
| Inserts | Brass-insert fittings, in-house |
| Color / resin match | Molded to match our pipe (green / white / coffee) |
| Custom / OEM tooling | Supported, lead time available on request |
The point of 10,000 molds is coverage: a buyer can configure an entire installation, supply, heating, valving and drainage, from a single supplier, with matched color and tolerance. Below is the breadth our injection lines run today, grouped by family with article-number ranges and sizes so you can check we already tool your part.
| Family | Representative parts | Article no. | Size range |
|---|---|---|---|
| Plain fittings | Socket, Tee, Elbow 45°/90°, End Cap, Reduce Socket, Reduce Tee, Crossover, Union, Pipe Clip | BK-25–113 | 20–63 mm |
| Threaded / brass-insert | Female & Male Socket, Elbow, Tee & Union; Brass Double-union; Seated Elbow; hot & cold exchange | BK-114–235 | 20–63 mm × 1/2–2″ |
| Valves (brass core) | Stop Valve, Brass Valve, Brass Double-union Ball Valve, America Stop Valve, Valve Head, slow-opening valves | BK-182–280 | 20–63 mm |
| Heating & solar | Manifolds 2–5 way, Radiator valves, Brass-nut filter, Air-vent plug, Solar & radiator set | BK-206–282 | 32/40 × 1/2–3/4″ |

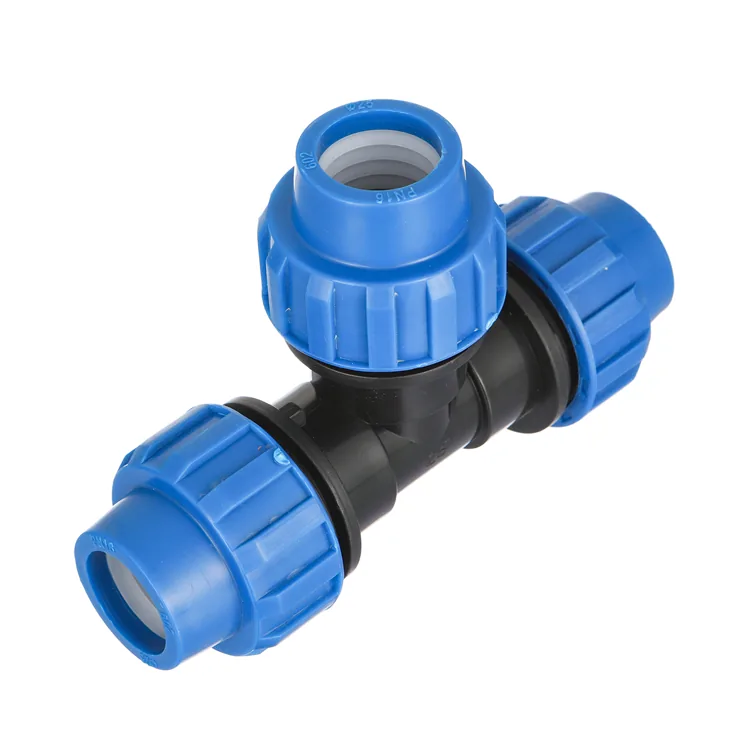

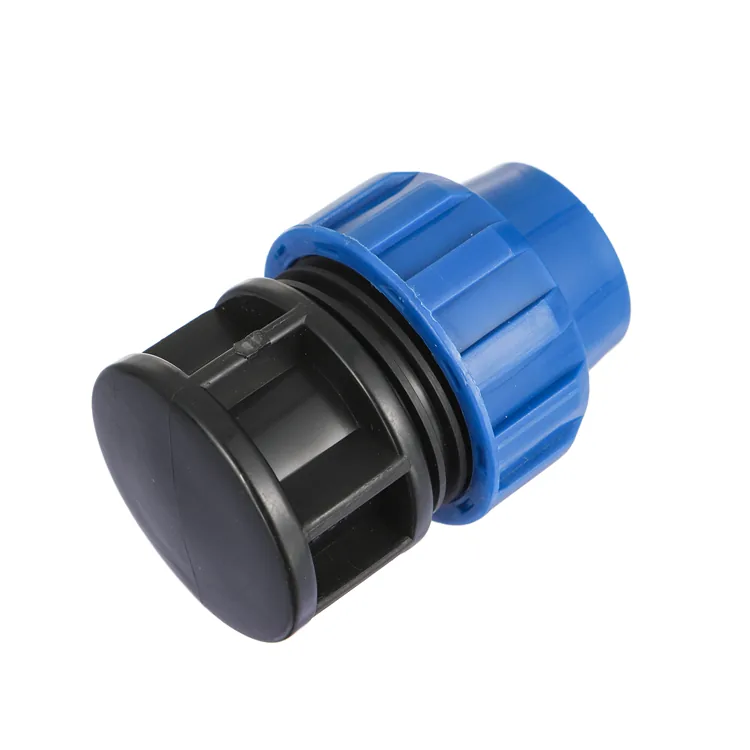

| HDPE / PP compression (HDPE) | Male/Female/Reduce Socket & Tee, Elbow, Cap, Compression Ball Valve, Saddle Clamp PN10 | PE series | PN10, sizes on request |

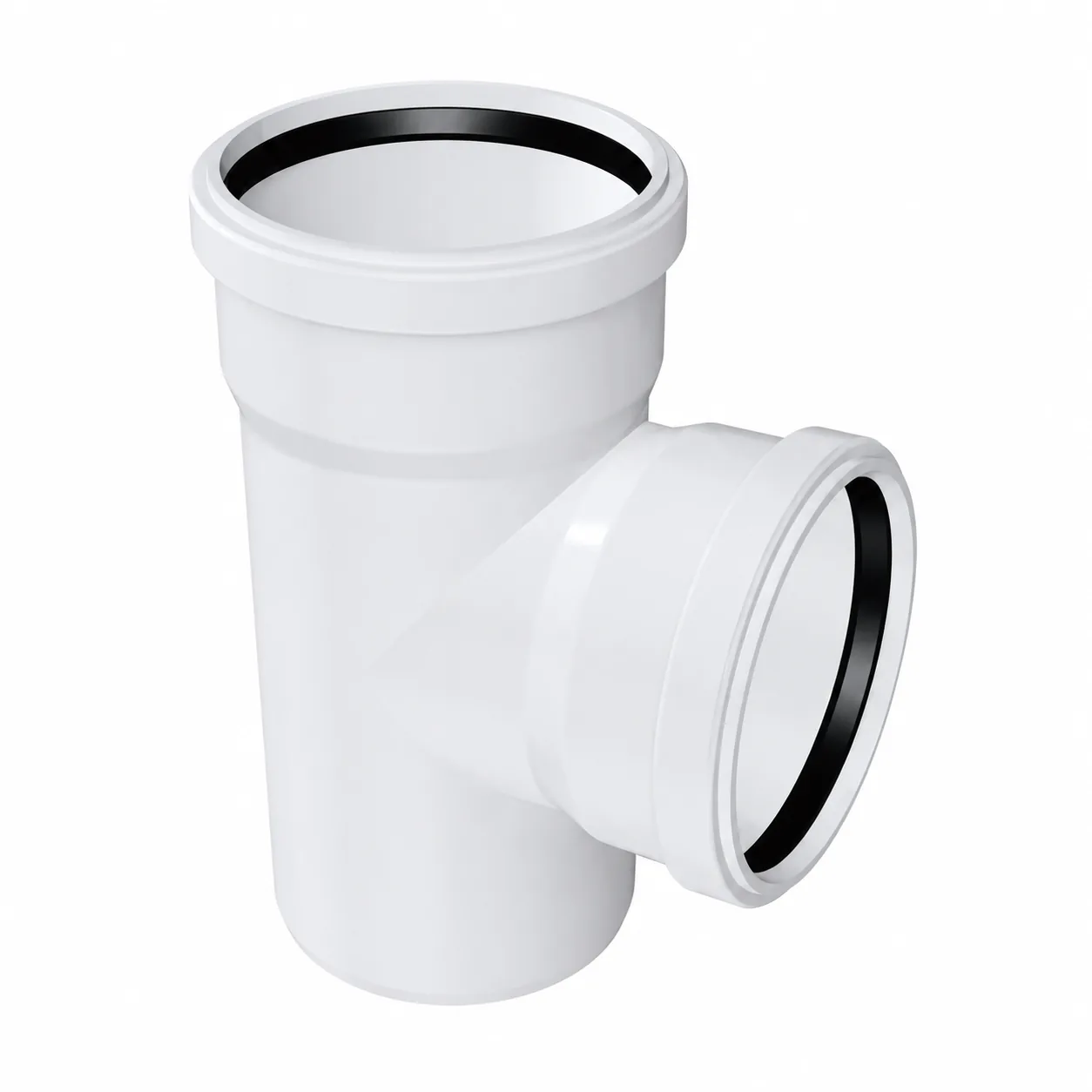

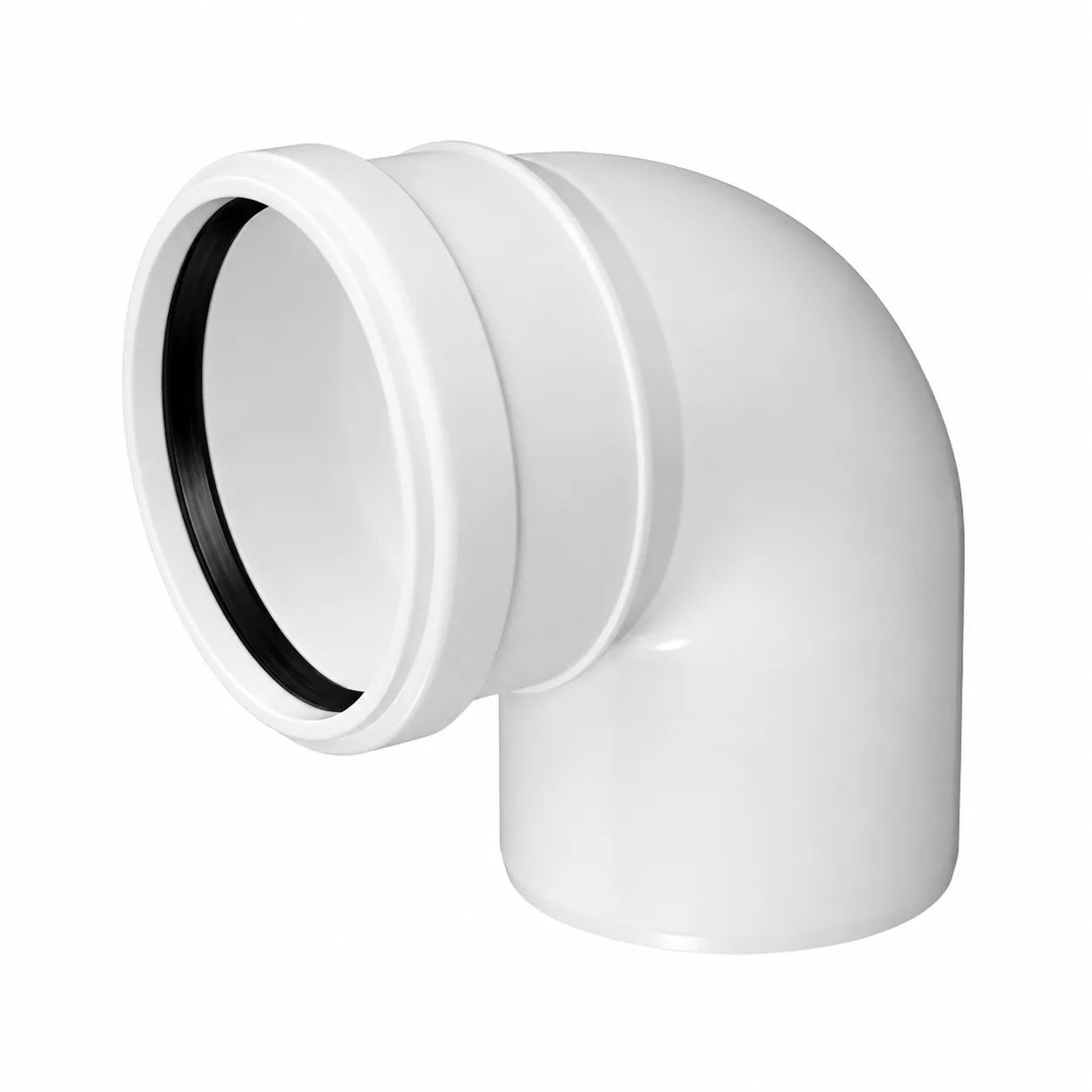

| UPVC drainage | Pipe TYPE1/TYPE2, Elbow 45°/87°, Single/Double Branch, Siphon, Reduction, Non-return valve | BK-307–349 | DN50–200 |
| Installation tools | PPR hot-melt welding machine, Pipe cutter, PTFE tape | BK-220–222 | 20–63 mm |

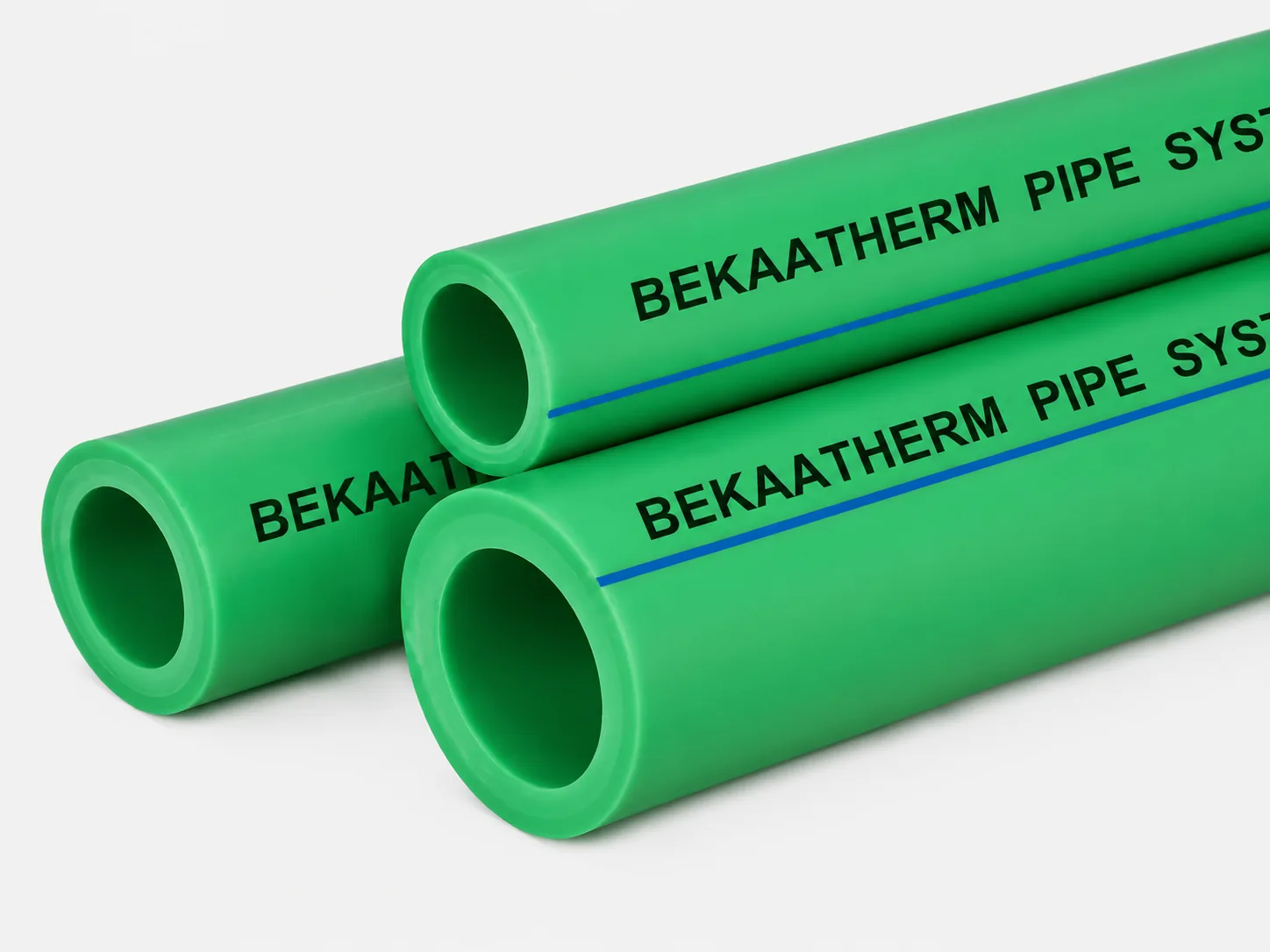

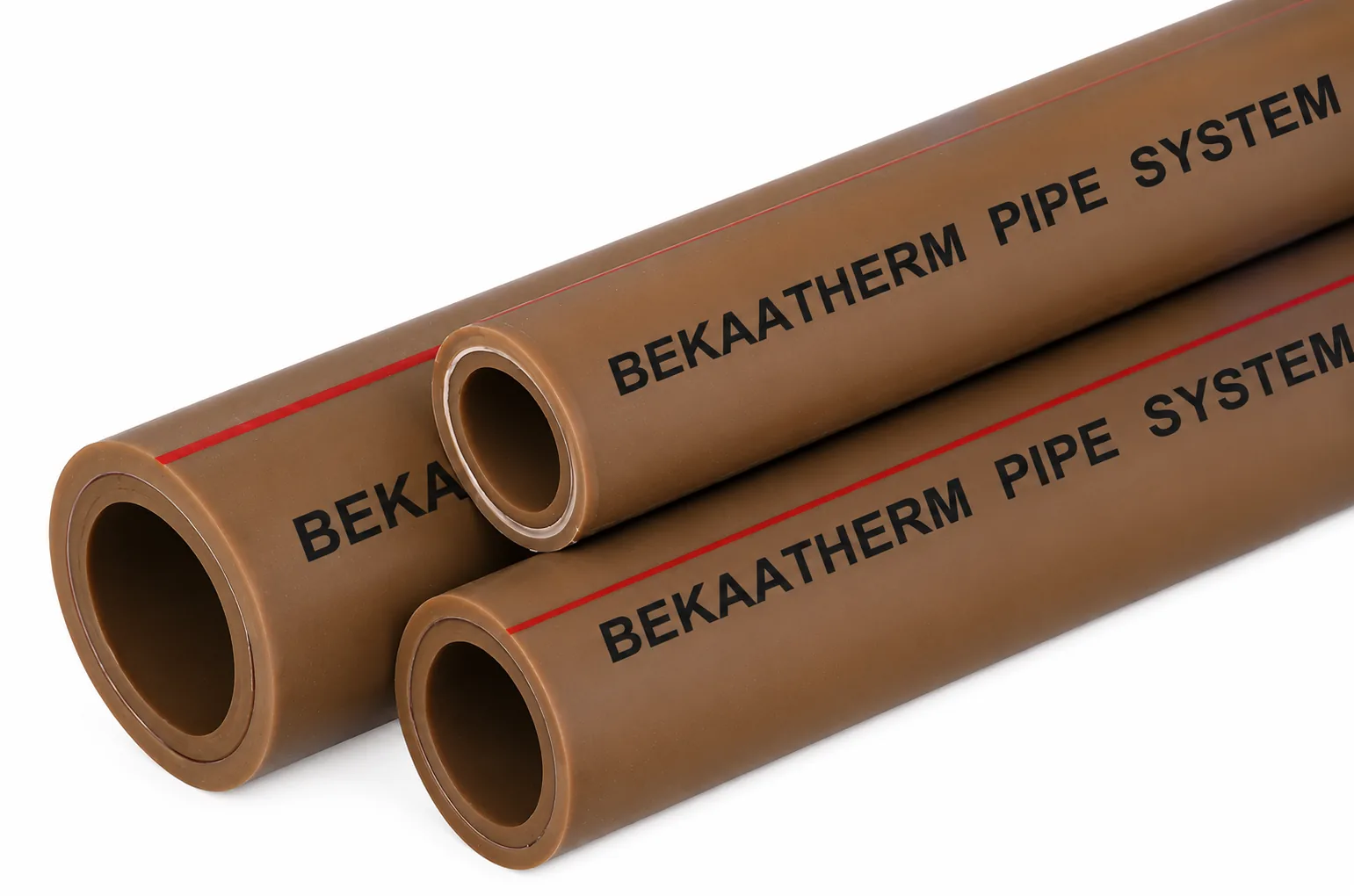

Finished PPR pipe and fittings from Bekaatherm production, the three color families, brass-insert fittings and the full connection system that comes off the same resin stream.

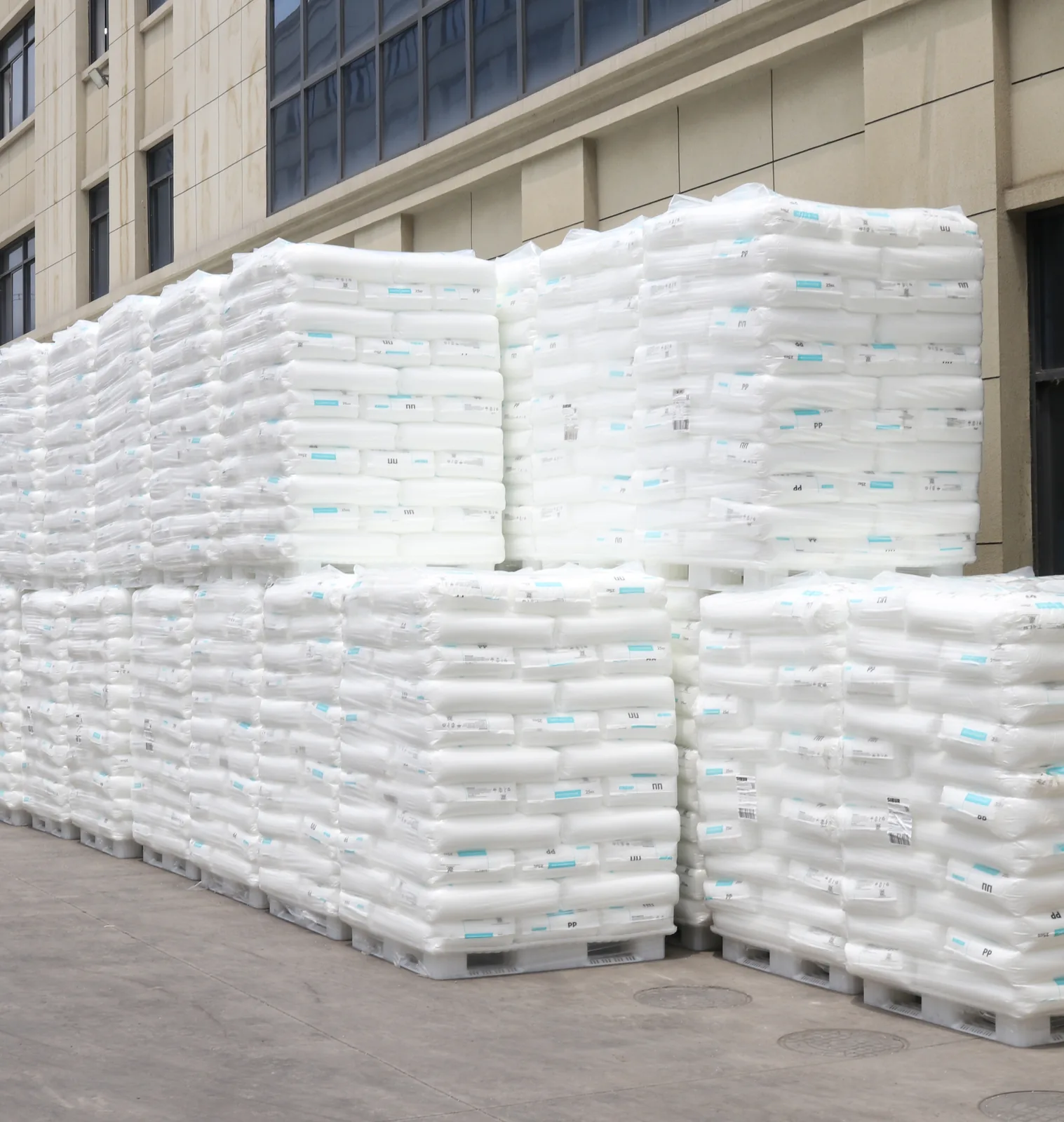

Color drift and wall-thickness variation between batches are what get pipe rejected on site, and they almost always start with the raw material. Bekaatherm runs on 100% high-standard resin with no filler blending, feeding both extrusion and injection from a controlled material system. Because pipe and fittings come off the same material stream, the green, white and coffee families stay consistent whether you order this month or reorder next year, the reorder confidence importers and project buyers actually need.
Filler blending is how a low price is quietly built, and it is also how a batch fails hydrostatic pressure or shows color you cannot match to last year’s stock. Running pure resin costs more per tonne, but it is the only way a factory can promise a distributor that container number twenty looks and welds like container number one. Batch records and third-party test reports are kept for traceability and released on request, and our Quality Control page walks the full inspection flow from resin intake to pre-shipment.
| Raw material | 100% high-grade resin, no filler |
| Pipe + fittings | Same material stream = matched color & performance |
| Color families | Green / white / coffee, held across batches |
| Batch records | Traceability & test reports, available on request |
| Detailed QC flow | See our Quality Control page |

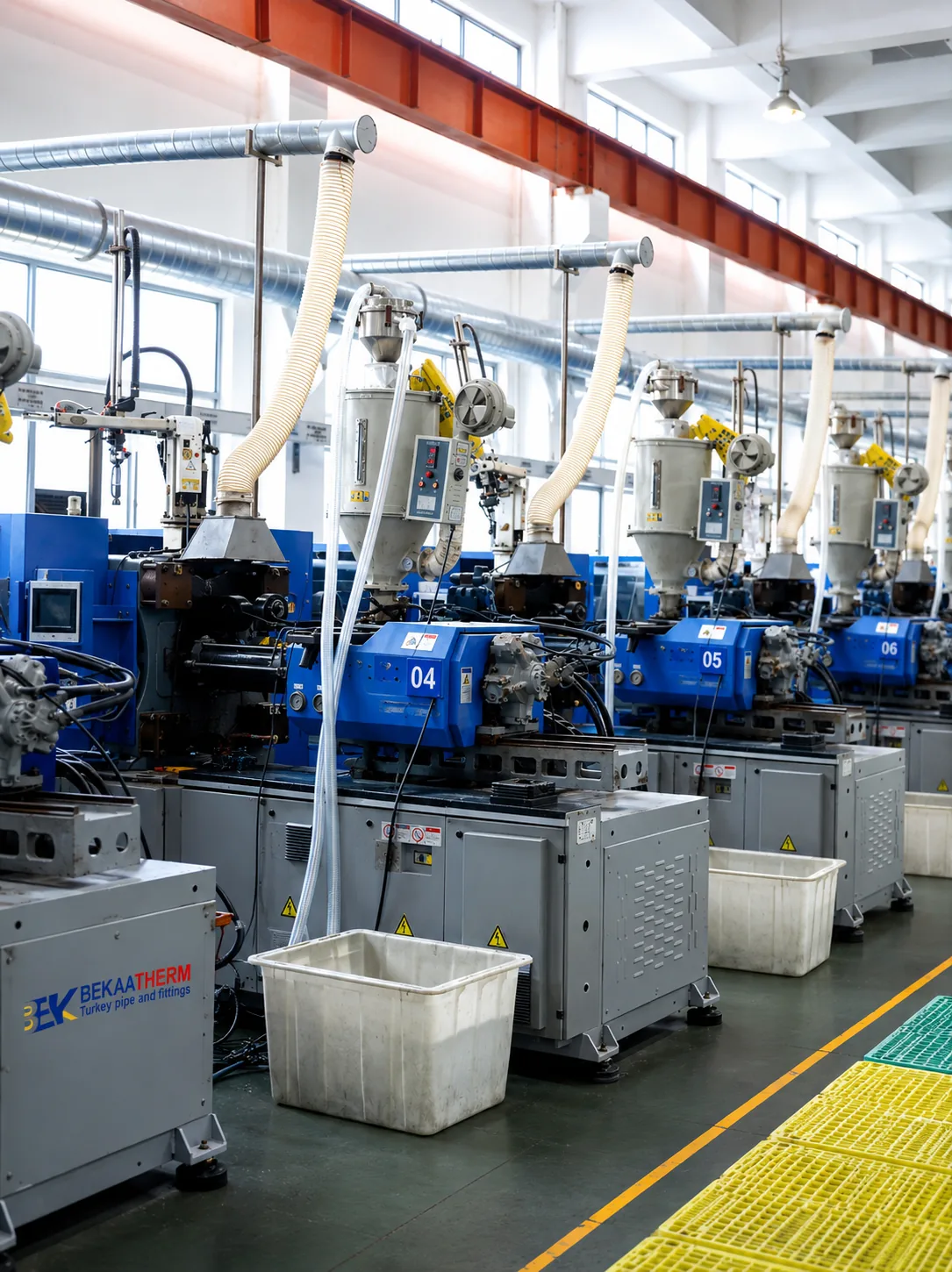

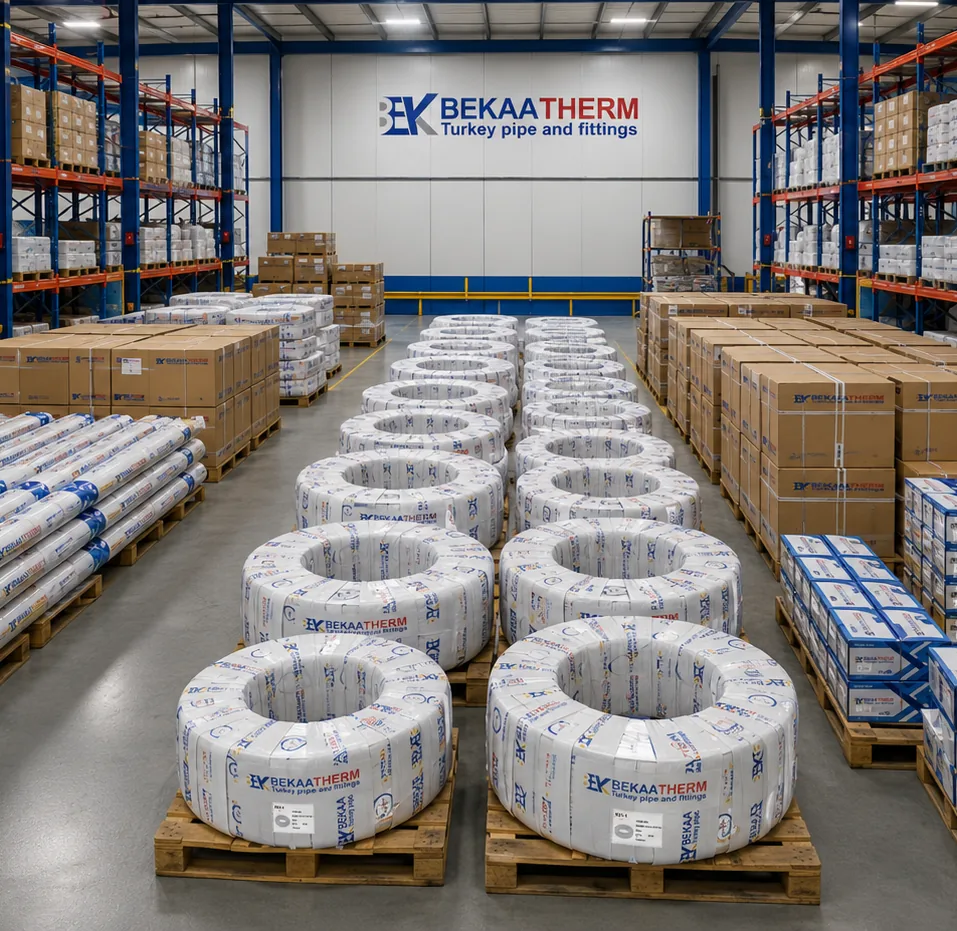

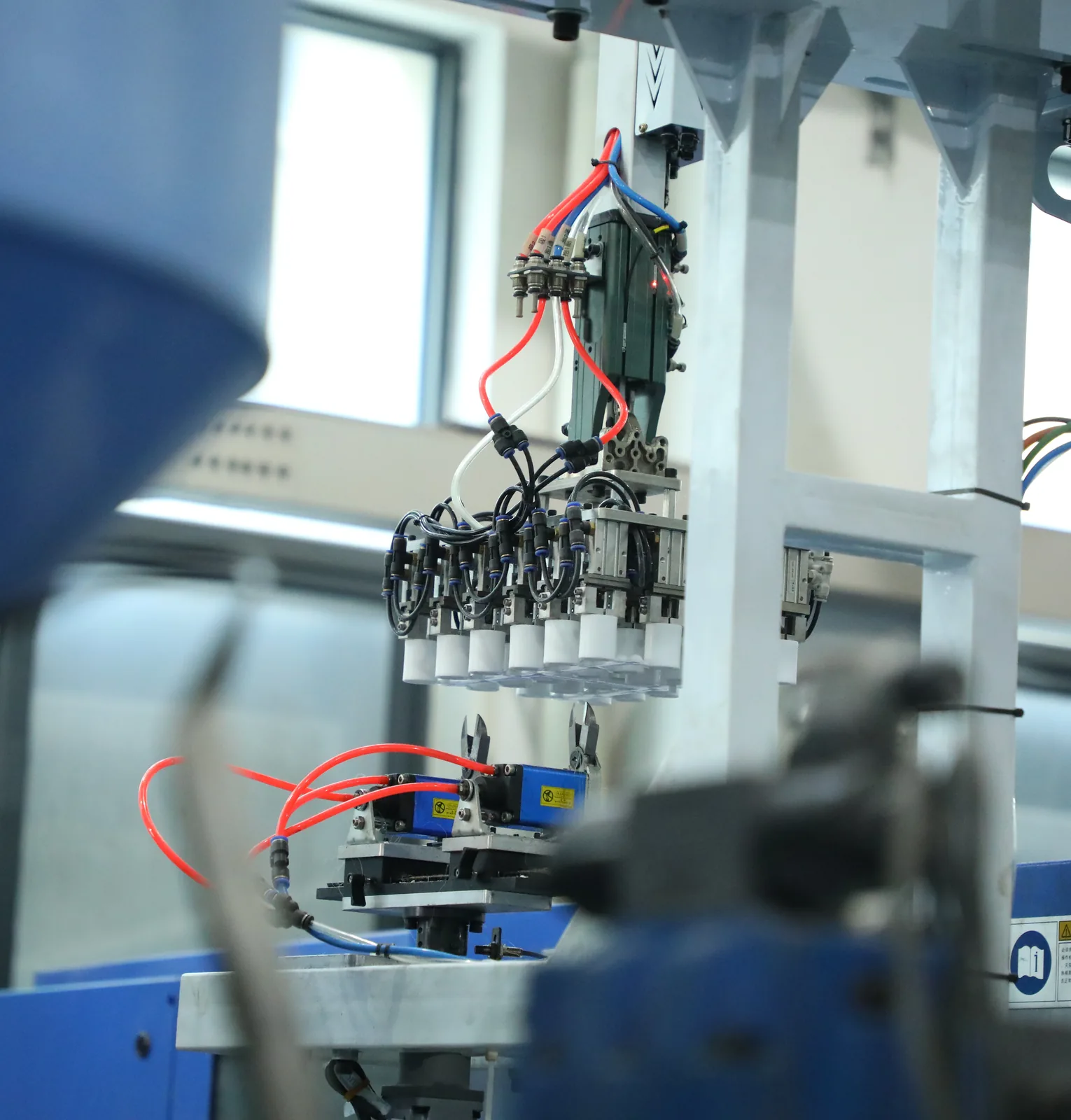

Behind the figures is a real factory floor. A 120,000 m² site with 1000+ employees is what turns a purchase order into containers that ship on schedule, extrusion halls, injection molding, brass insert production, in-line quality checks and a finished-goods warehouse feeding the loading bay, all under one roof and one management. When you buy from Bekaatherm you are buying from the maker, so specification, price and timing stay in one place instead of being passed through a middleman.

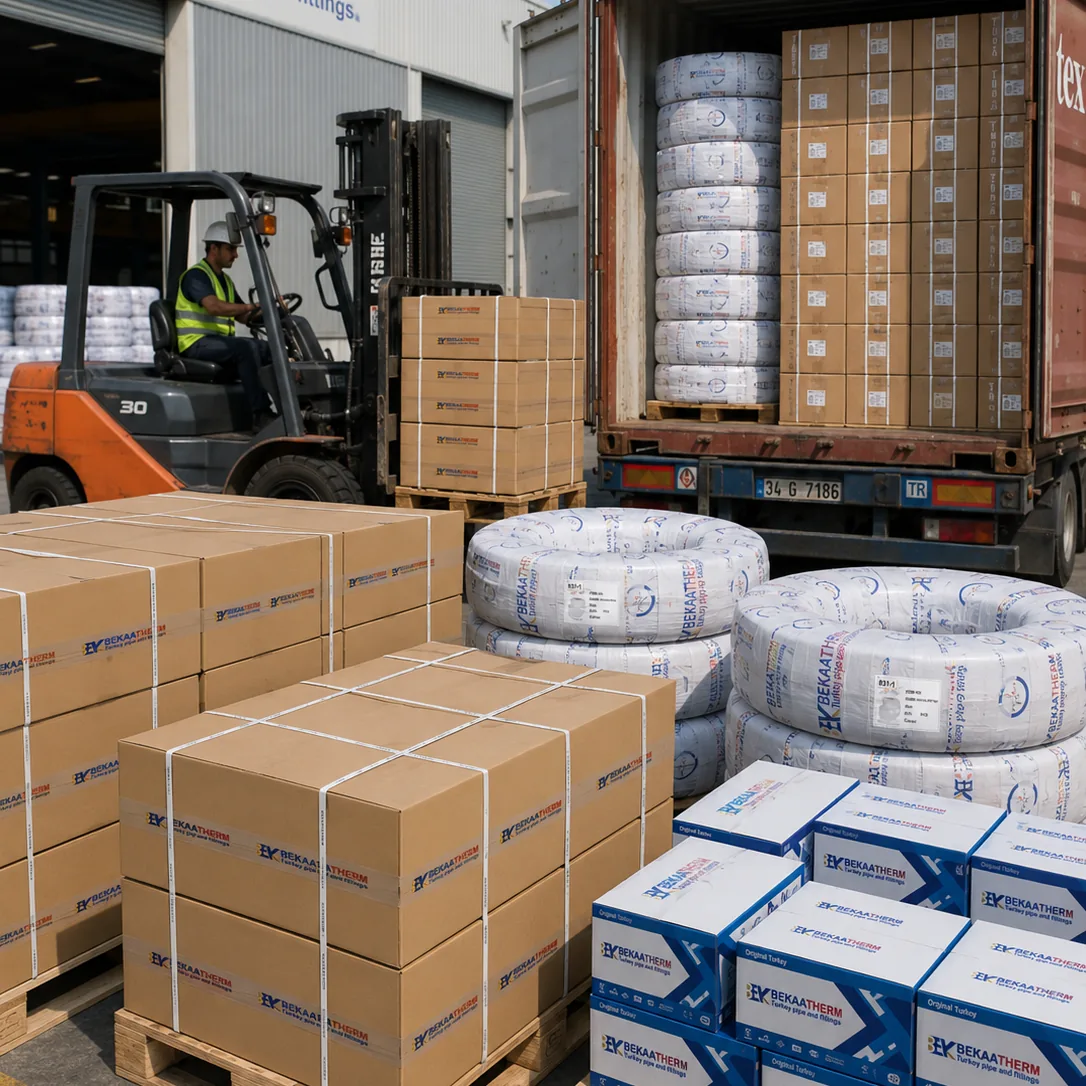

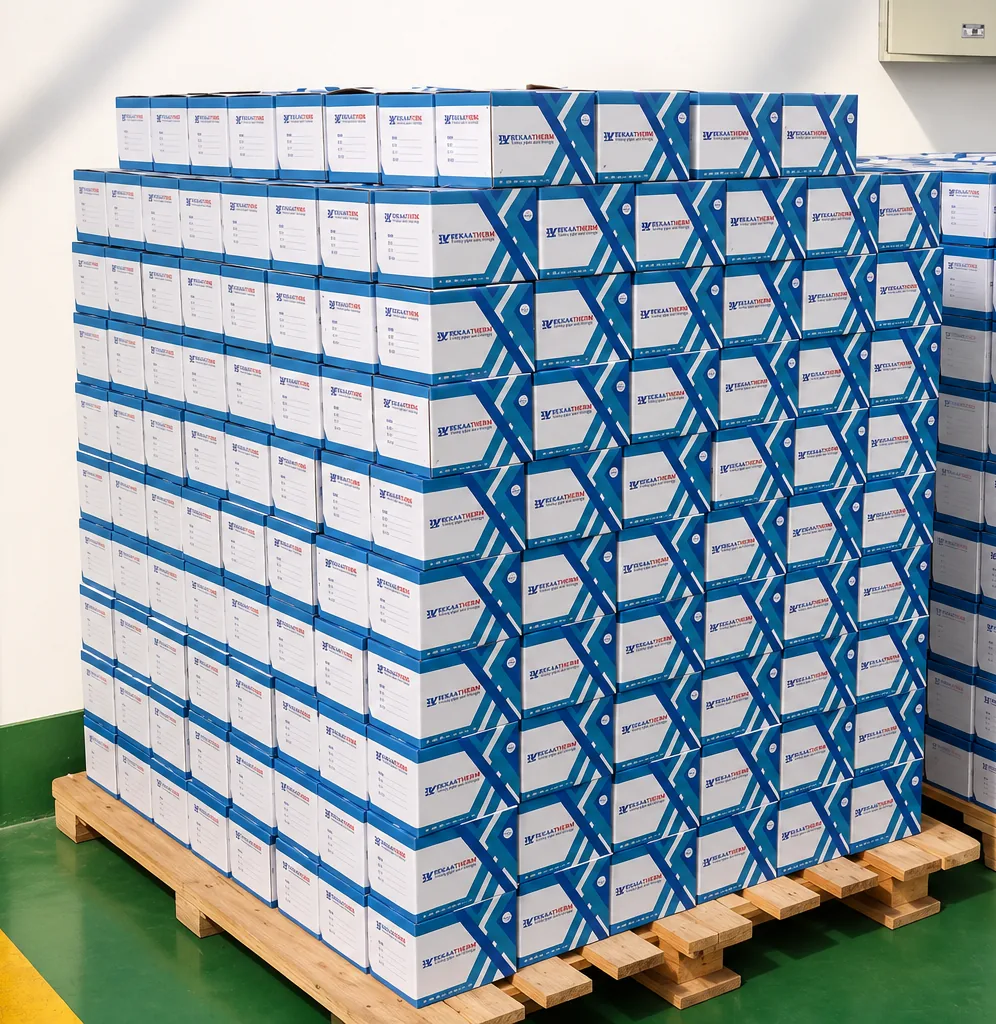

The production and export chain that stands behind a Bekaatherm quote, from the extrusion line to the loaded container.
A 120,000 m² plant and 1000+ people exist for one reason your business cares about: you don’t run out. For importers holding a market, that means reorders that arrive on schedule and stock that doesn’t gap in peak season. For project buyers, it means a large order produced in consistent batches rather than split across mismatched runs. Exact monthly output depends on the product mix and PN rating, so we size it to your program directly, tell us your annual volume and reorder cadence and our export team confirms real capacity and lead time for your case.
| For your business model | What our capacity delivers |
|---|---|
| Importer / distributor | Reliable reorders, no peak-season gaps, exclusivity available |
| Project / bulk buyer | Large orders in consistent batches, on-time for site schedules |
| Wholesaler / trader | Full pipe + fittings + valves range in one shipment, retail-ready packing |
| OEM / private-label brand | Volume to launch and scale your own branded range |
| Monthly capacity | Sized to your program, request your figure |

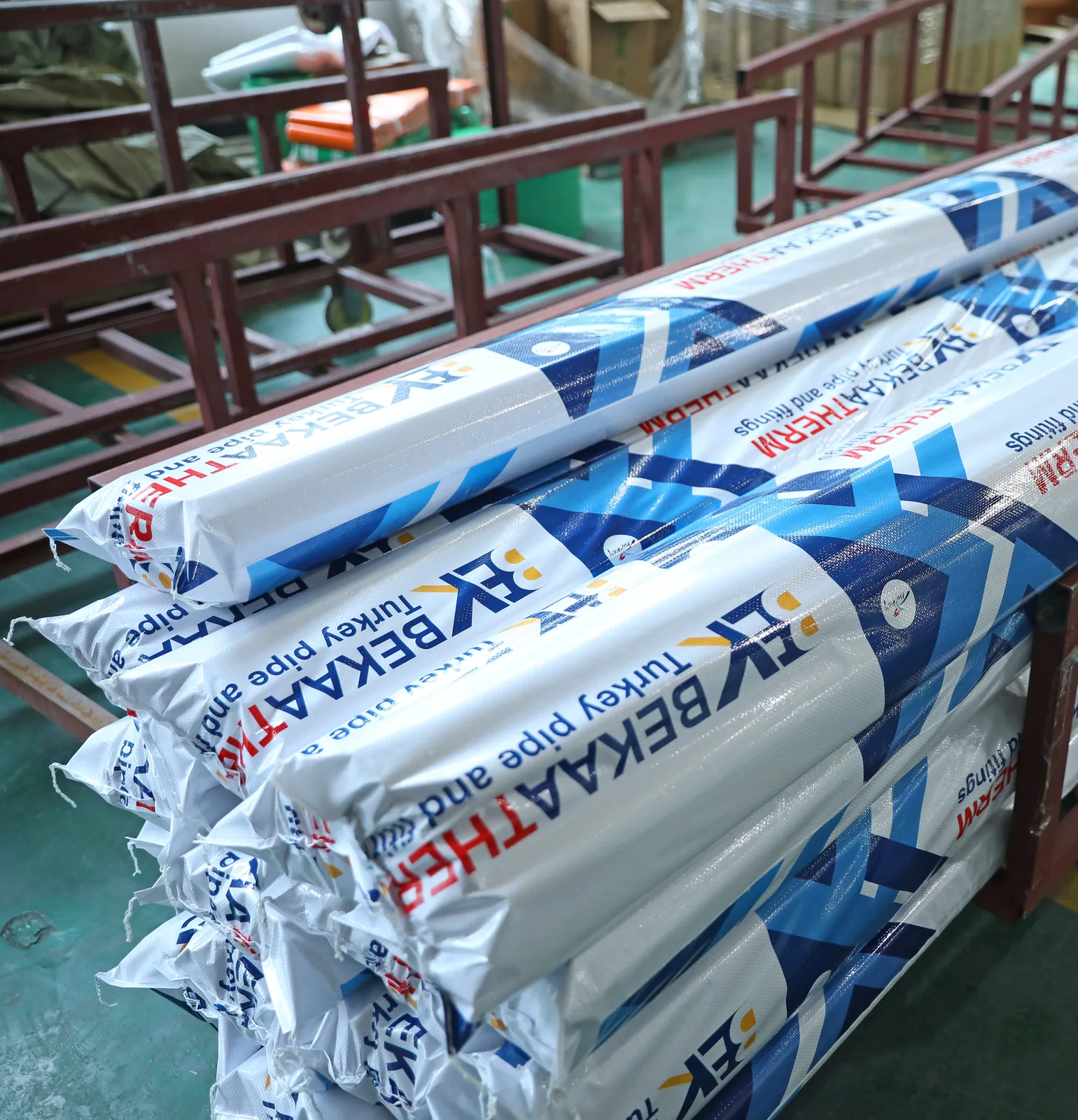

Bekaatherm fully supports OEM and private label, and offers regional exclusivity to serious brand partners. With 10,000 molds and in-house extrusion, we can run your own color, logo print, labels and packaging across the PPR pipe and fittings range, and open custom tooling for non-standard parts. Because production stays in-house on our own lines, your specification and your volume stay yours, the protection a private-label brand needs before committing its name to a factory.
The output of these lines goes into cold and hot water supply, drinking water, wall, floor and radiator heating, air-conditioning and general fluid transfer, the applications our resin, pressure classes and full fitting system are engineered for.

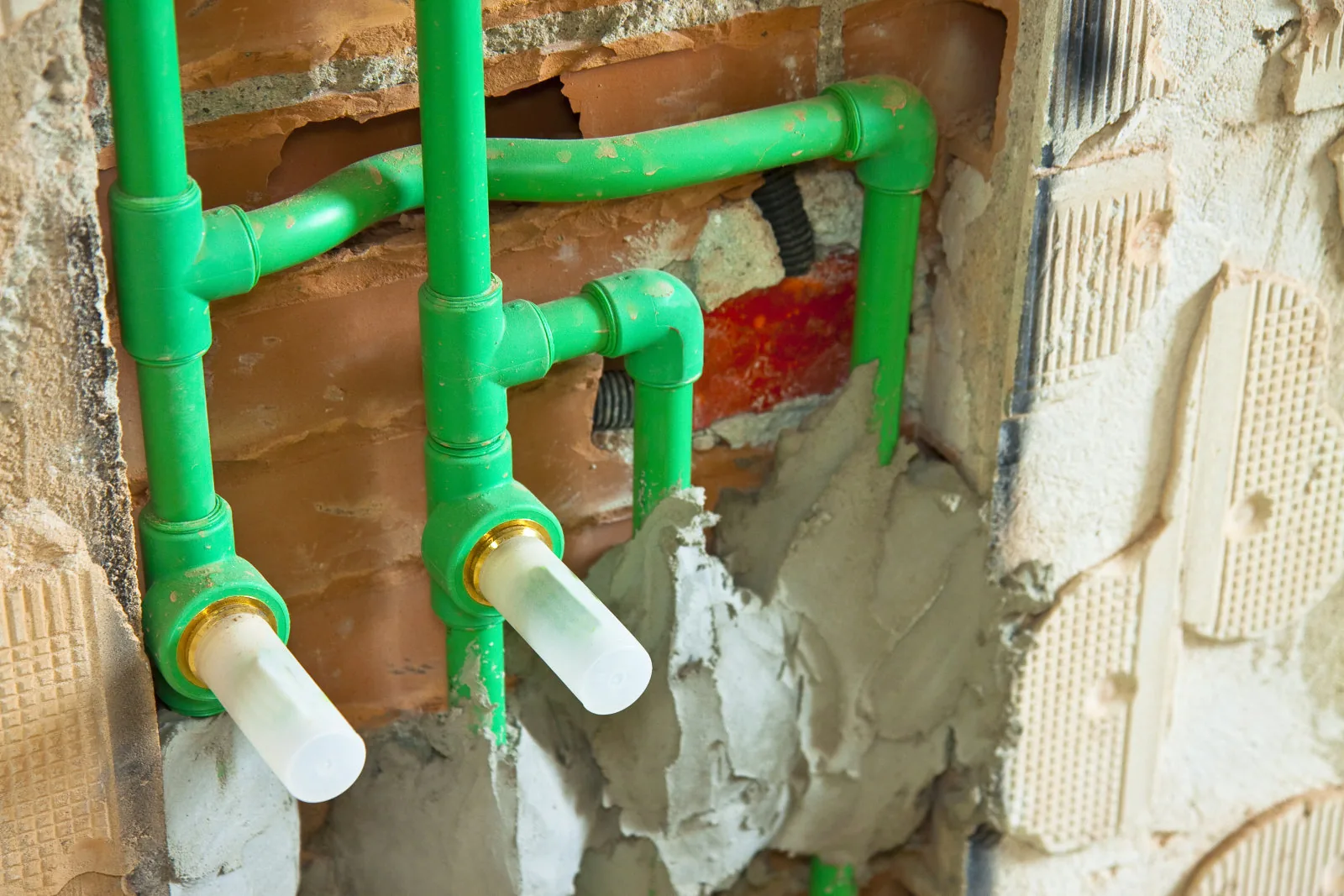

PN20 / PN25 PPR for cold and hot potable water, welded leak-free with matched fittings.
Larger 40–63 mm runs and composite pipe for buildings, risers and air-conditioning.

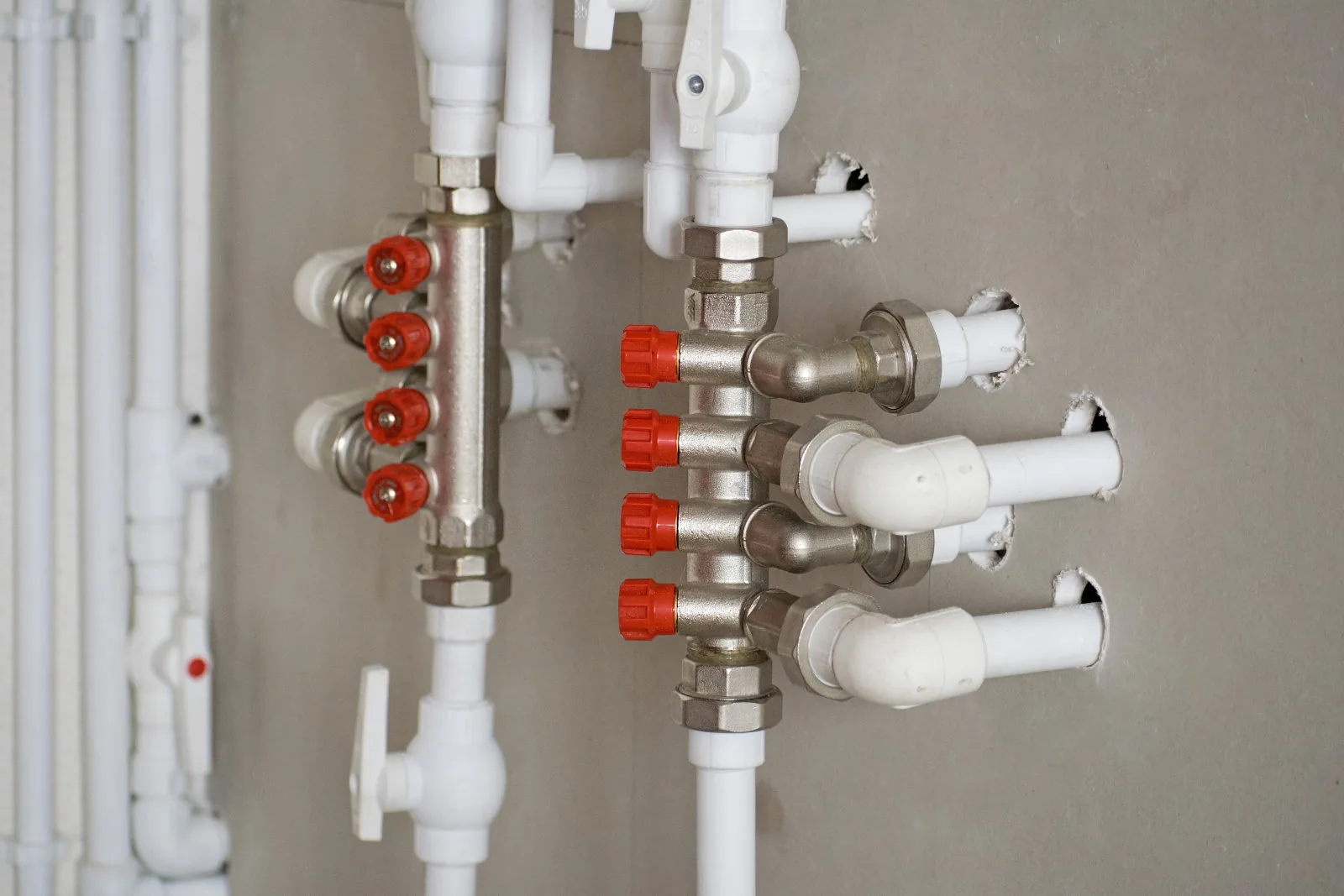

Radiator valves, brass-insert fittings and low-expansion composite pipe for heating loops.
2–5 way manifolds and solar / radiator sets for floor heating and solar water systems.
Manufacturing capacity only counts if the goods clear customs and reach your market. Producing in Türkiye gives Bekaatherm short lead times to Europe, the Middle East and Africa, and a “Made in Türkiye” origin that customs and project inspectors recognize. Thirty years of production and exports to 118+ countries mean the paperwork, the packing and the certifications, SKZ, ISO, CE, WRAS, are already proven. You’re not the test case.
Certificate numbers and copies are available on request.
For the Importer: We manufacture across a 120,000 m² facility with 1000+ employees and 30 years of PPR/PE production, so large orders and steady reorders are routine. Exact monthly output depends on your product mix and PN rating, tell us your annual volume and our team confirms real capacity and lead time. Published monthly tonnage: coming soon.
For the OEM Brand: Yes. We hold 10,000 sets of molds, enough to run the full fittings, valve and manifold range with matched resin and color, and to open new tooling for non-standard parts. That mold depth lets us take on custom and private-label programs without long tooling delays. Custom tooling lead time is available on request.
For the Project Buyer: Our scale lets us produce large orders in consistent batches, pipe and fittings run off the same 100% high-grade resin stream, so color and wall thickness stay uniform run to run. Batch records and test reports are available on request, and our Quality Control page details the process.
For the Distributor: We manufacture five systems in-house, PPR pure, PPR-AL-PPR and PPR-FG pipe (20–63 mm, PN20/PN25), the full PPR fittings, valves and manifold range, HDPE / PP compression fittings (PN10) and UPVC drainage (DN50–200), plus installation tools. That means one supplier covers supply, heating, outdoor and drainage, no need to source across several factories.
For the Contractor: Yes. Pipe and fittings are extruded and molded from the same high-grade resin stream in matched green, white and coffee, so they weld as a family and hold color across batches. Brass-insert threaded fittings are molded in-house on the same lines, giving consistent tolerance at every metal-to-plastic transition.
For the Brand Owner: Yes on both. OEM and private label are fully supported, your color, logo, labels and packaging across our range, and we offer regional exclusivity to committed partners. Production stays in-house on our own lines, so your specification and volume stay protected. MOQ is low to start; the exact figure is confirmed on enquiry.
Manufacturing capacity sits at the center of our trust hub. Follow the links to see the factory, the quality flow, the export chain and the products these lines actually make.
Tell us your product system (PPR pipe, fittings, HDPE, drainage), your annual volume, whether you need OEM / private label, and your market. Our export team comes back with real capacity, MOQ and lead time for your case, plus our Company Profile.
